Key Structural Features

• The main basic parts such as the base, sliding seat, workbench, column, and headstock are made of high-rigidity cast iron structure, and the reinforcing ribs of the mesh structure are distributed inside, which ensures the high rigidity and bending and shock-absorbing performance of the basic parts; The basic parts are molded with resin sand and subjected to aging treatment to ensure the stability of the long-term use accuracy of the machine tool and provide a guarantee for the stability of the machine tool performance.
• The X, Y, and Z guide rails are all high-rigidity rolling linear guide rails, combined with automatic forced lubrication, the frictional resistance of the movement is extremely small, there is no low-speed crawling phenomenon, and the machine tool has high precision and long life.
• The feed in the three directions of X, Y, and Z adopts large-pitch, high-precision, high-strength ball screws, and the feed speed is high; the servo motor is directly connected to the lead screw with an elastic coupling, and the feed servo motor directly transmits power Provide high-precision ball screw to ensure the positioning accuracy of the machine tool.
• Adopt Taiwan Luoyi spindle unit, high-speed, high-precision, high-rigidity spindle unit, strong axial and radial bearing capacity, speed up to 8000rpm.
• The guide rails and lead screws in the three directions of X, Y and Z are all sealed and protected to ensure the cleanliness of the lead screws and guide rails, and to ensure the transmission and motion accuracy of the machine tool.
• The outer protection of the machine tool is designed with a fully enclosed mechanism; it is safe and reliable.
• Adopt Taiwan Okada/Relib's automatic tool change disc type tool magazine, the tool change is accurate, and it has been tested for millions of operations and meets the reliability requirements.
• The operating system of the machine tool is designed according to the principle of ergonomics, the operation box is set independently, close to the operator, equipped with a hand-held electronic handwheel operation box, which is convenient for tool setting.
• Adopt advanced centralized automatic lubrication device, regular and quantitative automatic intermittent lubrication, stable and reliable work.
• The machine tool is equipped with a well-known CNC control system, which has complete functions, easy operation, stable precision and reliability; the electrical system adopts a separate design structure of transformer and control system to reduce heat generation, reduce the temperature change of the electrical box, and improve the service life of electrical parts and the system control reliability.

Product Parameters

Optional Configuration

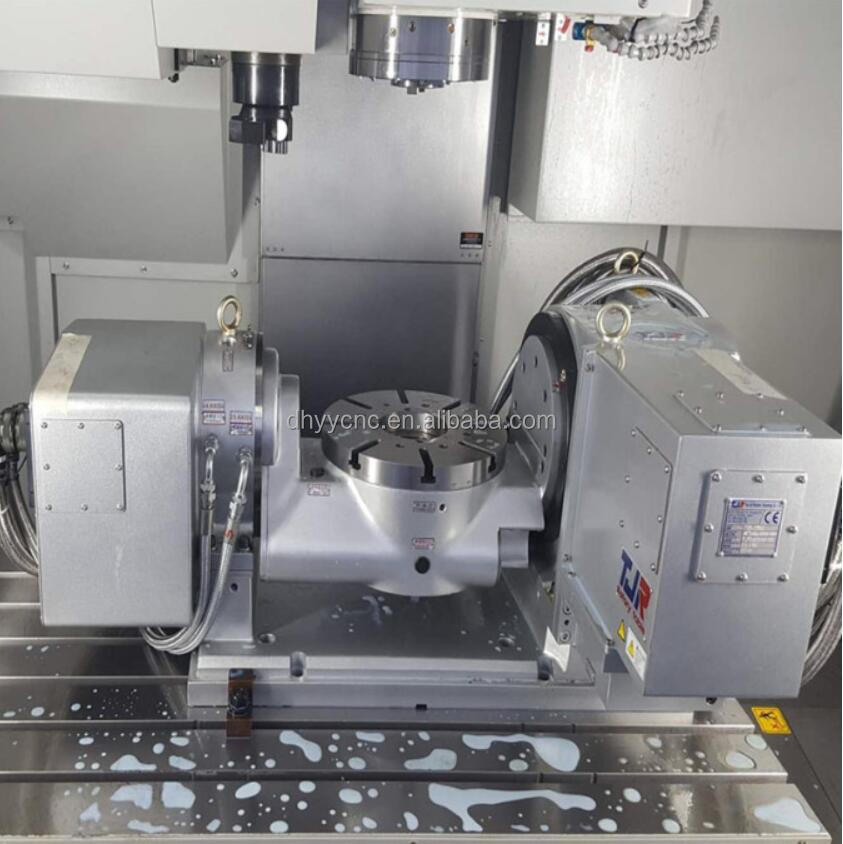

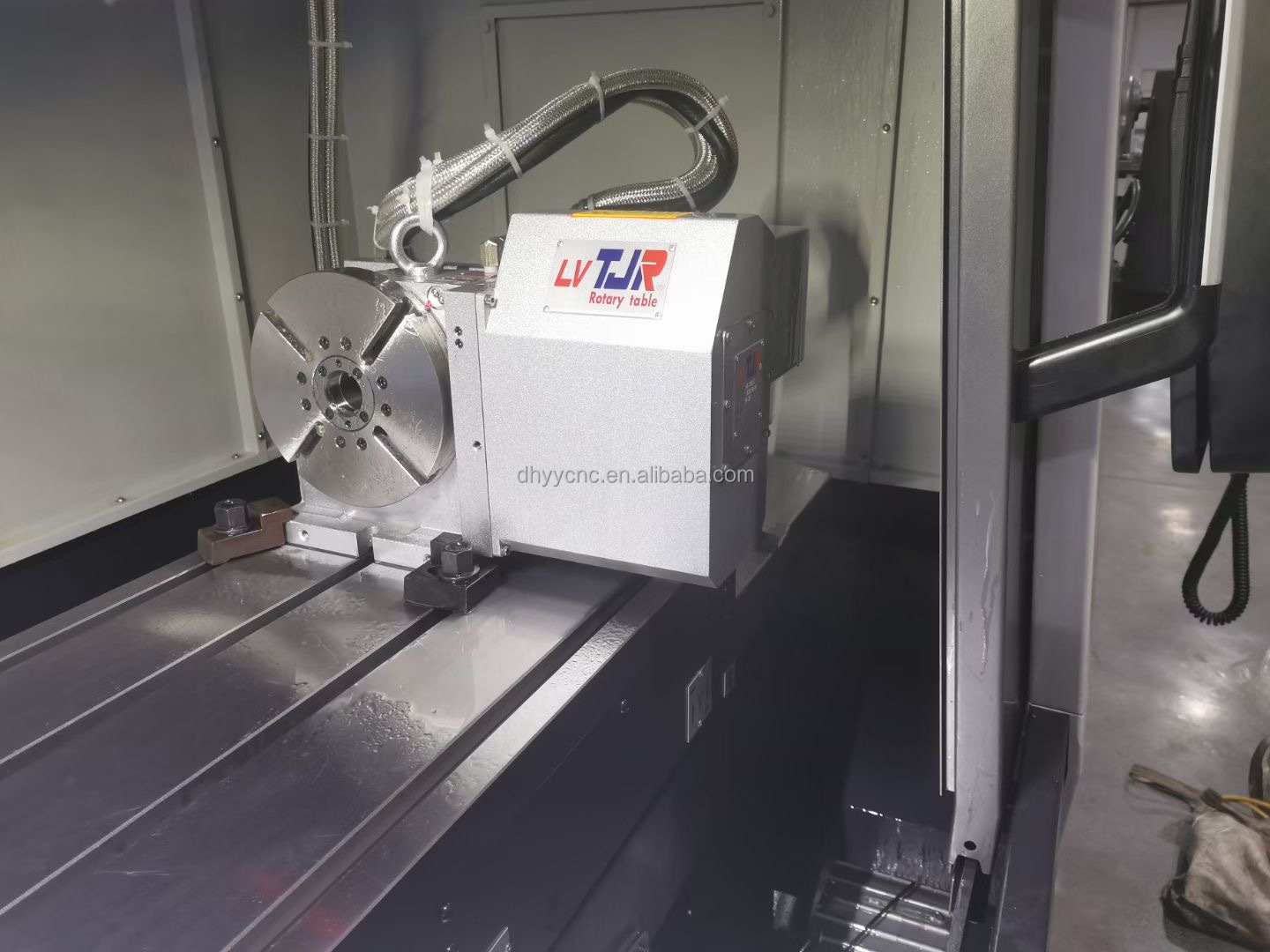

The 4th or 5th axis is optional.

Details Images

Control System

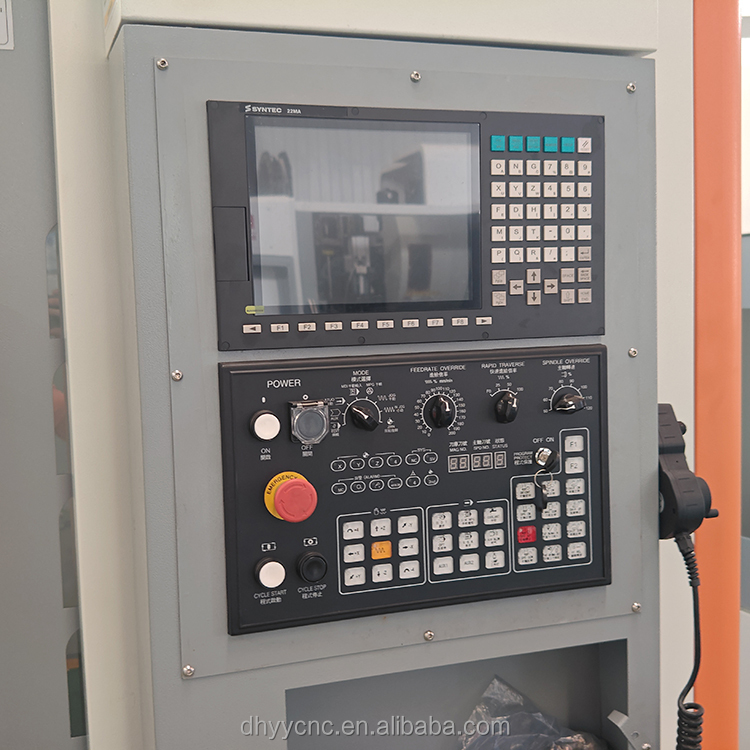

Optional: Fanuc, Siemens, Syntec, Mitsubishi CNC System.

Tool Magazine

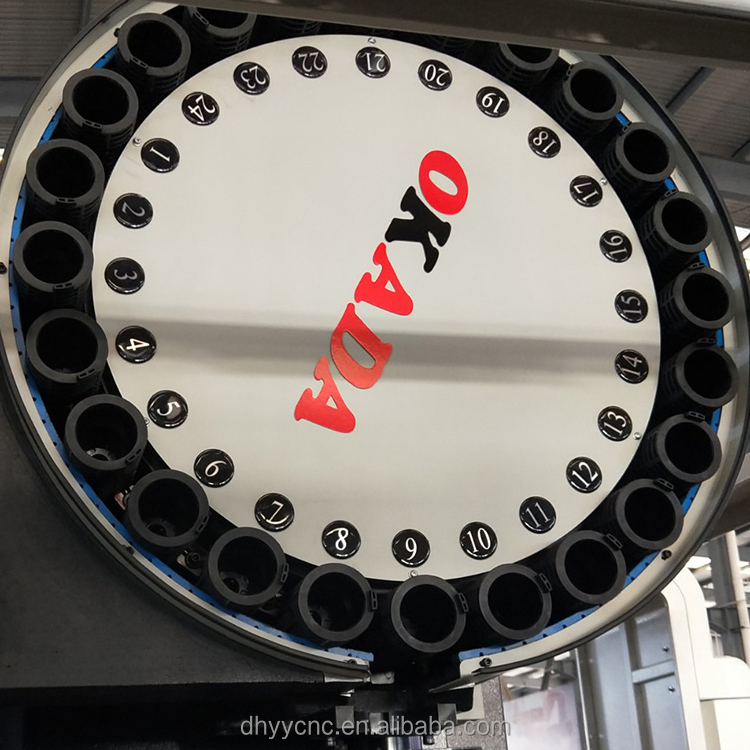

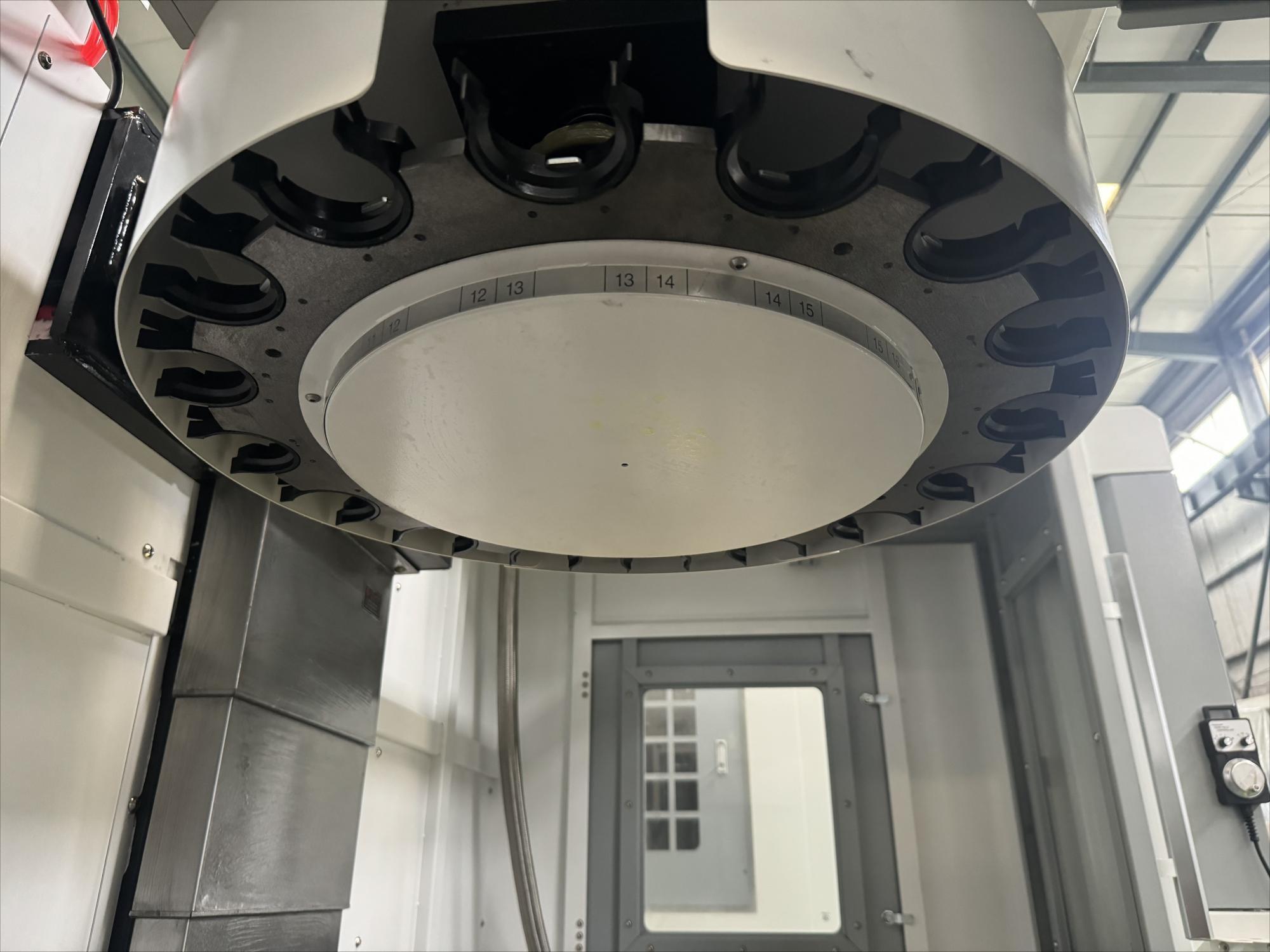

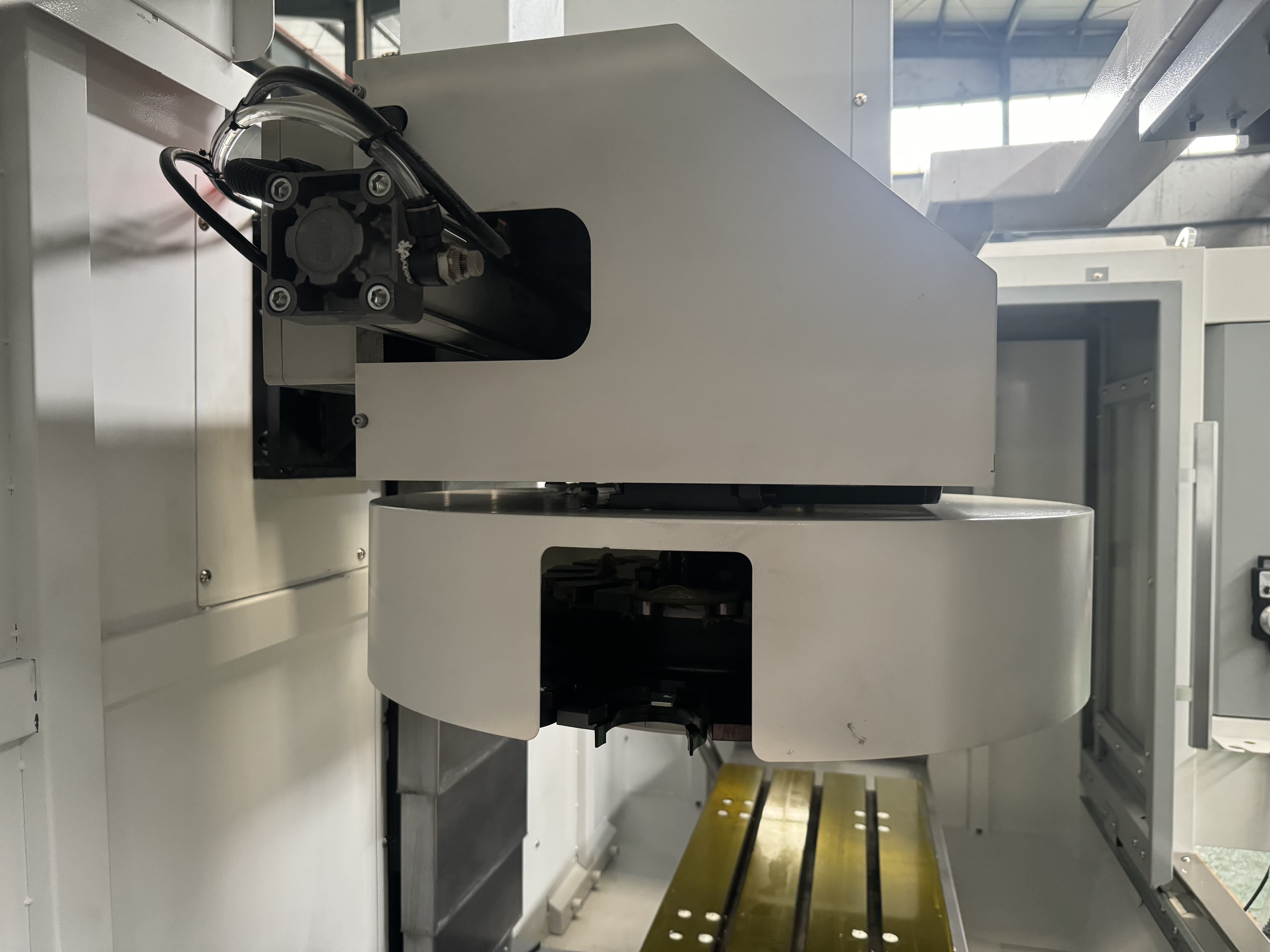

The tool magazine has 24 tools, and tool changing is fast and reliable, shortening non-cutting time and improving production efficiency.

Taiwan Spindle

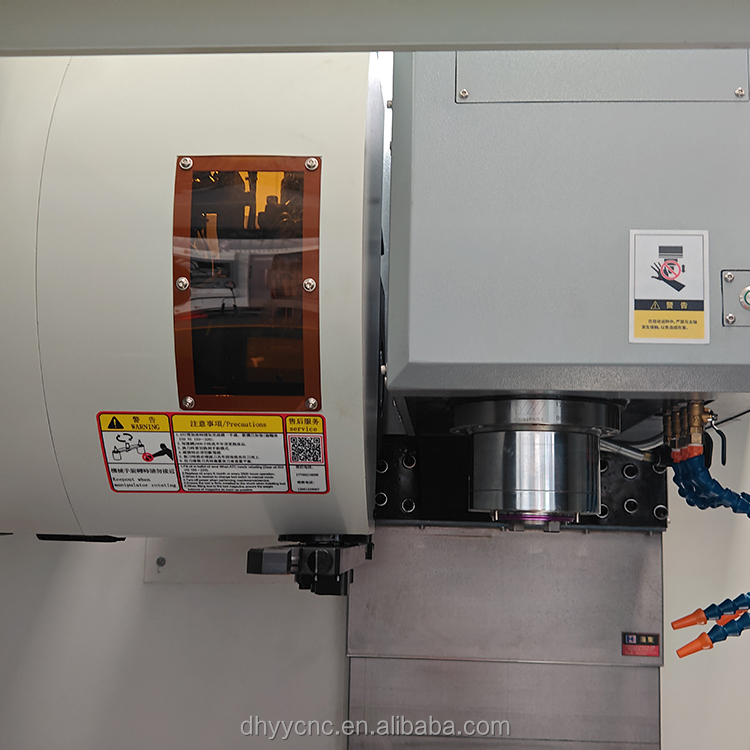

The advanced spindle design provides powerful axial thrust, and there are multiple choices of spindle speeds 6000/8000rpm to meet various high-speed processing requirements.

Worktable

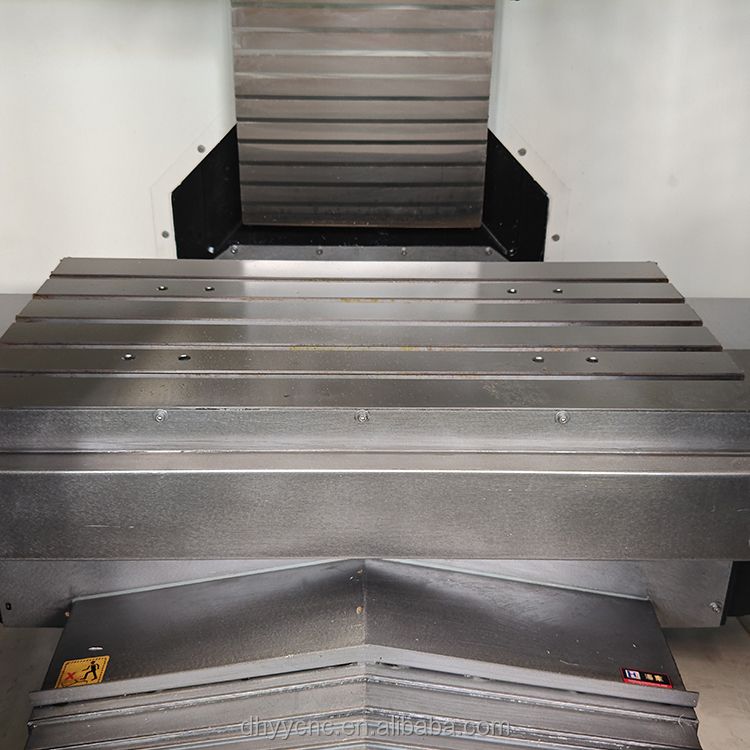

Experienced high frequency quenching heat treatment ensures that the workbench has maximum hardness and durability.

Taiwan Roller Linear Guideway & Lead Screw

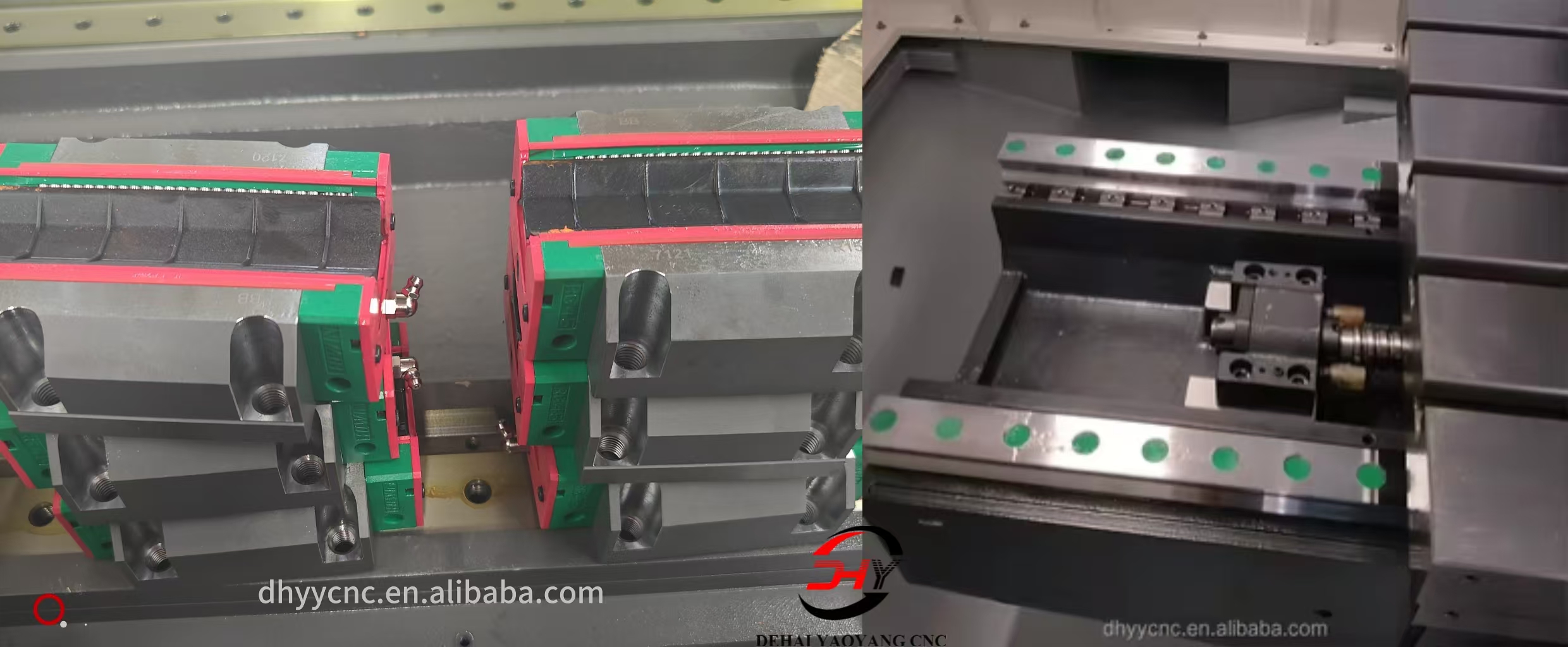

Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class. The guide rails and lead screws in the three directions of X, Y and Z are all sealed and protected to ensure the cleanliness of the lead screws and guide rails, and to ensure the transmission and motion accuracy of the machine tool.

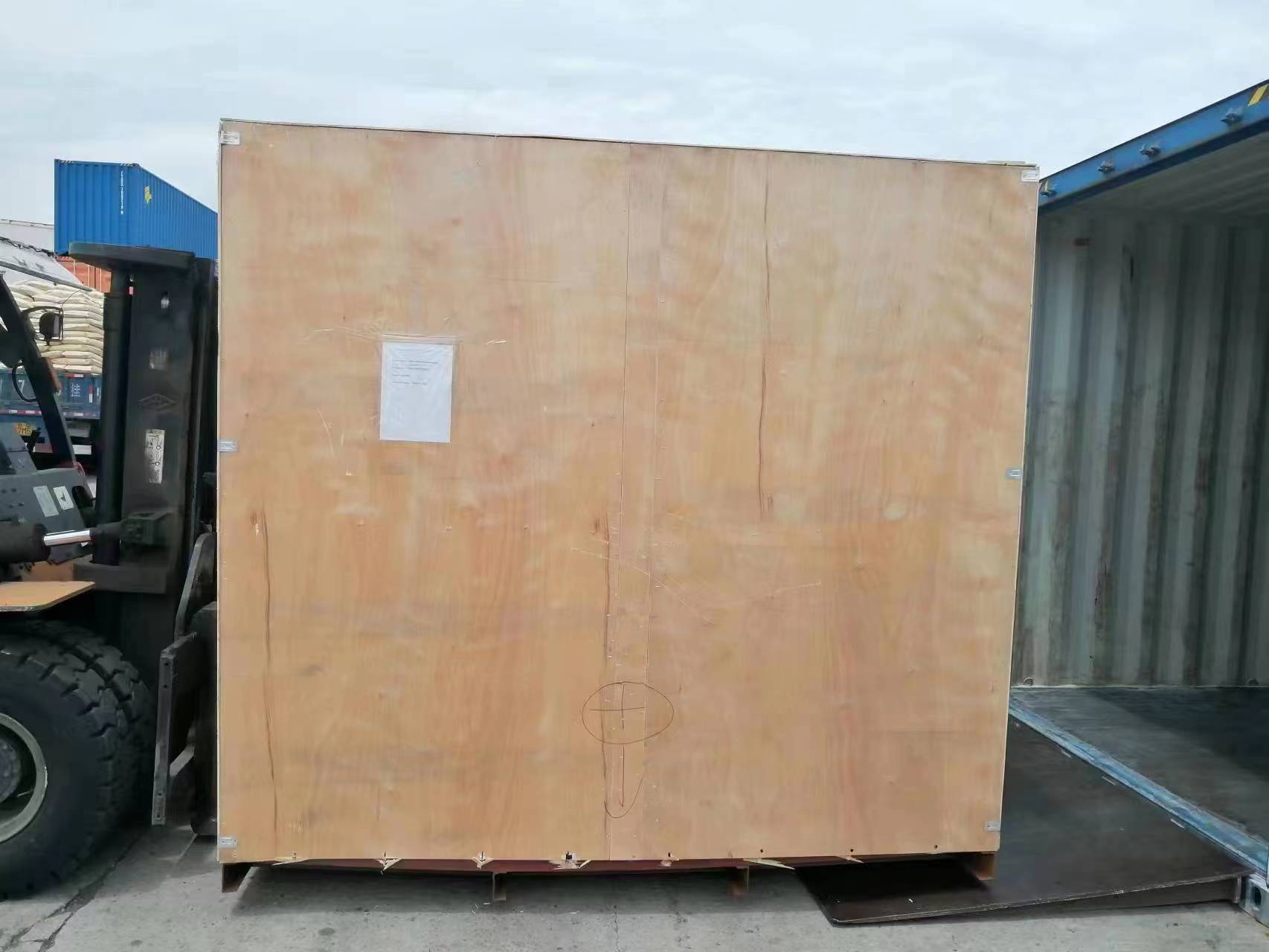

Product Packaging
