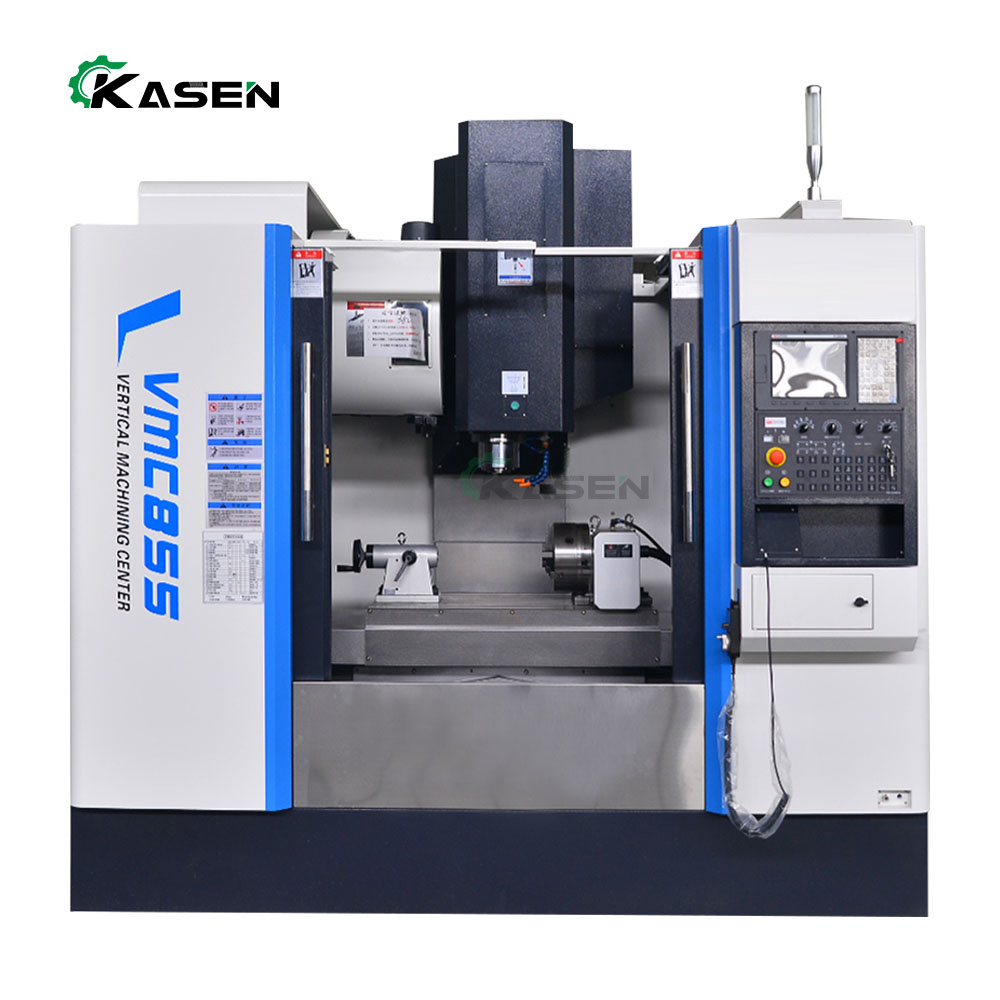

CE Certified High Safety Grade CNC Vertical Machining Center VMC 855 Heavy Duty Cnc Milling Machine

Features

1. The CNC Machine Tool Body Has Undergone a Complete Casting Process To Ensure The Quality Of The Product
2. Taiwan Spindle (Speed, Brand, Can Be Matched According To Customer Requirements)
3. Taiwan Ball Screw And Locking Nut
4. Taiwan Pressure Cylinder
5. Japanese NSK Bearing Germany R+W Coupling
6. Automatic Lubrication System
7. Chip Conveyor At Optional (According To Customer Requirements)

Optional Configuration

System: Syntec, Siemens, Fanuc, Mitsubishi
24 Arm Tool Magazine
4th Axis, 5-axis
Spindle Oil Cooling
Chip Conveyor
Oil-Water Separator
Air Conditioner
Higher speed of Spindle

Application

This VMC is suitable for mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring, etc.

Main Technical Specifications

Specifications	Units	VMC855
Table size	mm	1000x550
X axis travel	mm	800
Y axis travel	mm	550
Z axis travel	mm	550
Max. worktable load	kg	500
T slot (number-width-pitch)		5-18x100
Max. spindle speed	rpm	8000 (Optional: 12000)
Spindle taper	mm	BT40
Main motor power	kw	7.5/ 11
X/Y/Z rapid traverse speed	m/min	24/24/20 (Optional: 48/48/36)
Cutting feed speed	mm/min	1-10000
Guide rail type		Linear rail
Distance from spindle axis to column surface	mm	525
Distance between spindle nose and worktable surface	mm	140-740
Positioning accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003
Tool magazine		24 bar
Max. tool diameter	mm	φ78 (Adjacent) / φ120 (Apart)
Max. tool weight	kg	8
Machine weight	kg	5600
Overall dimension	mm	2600x2300x2550

Components & Optional Additions

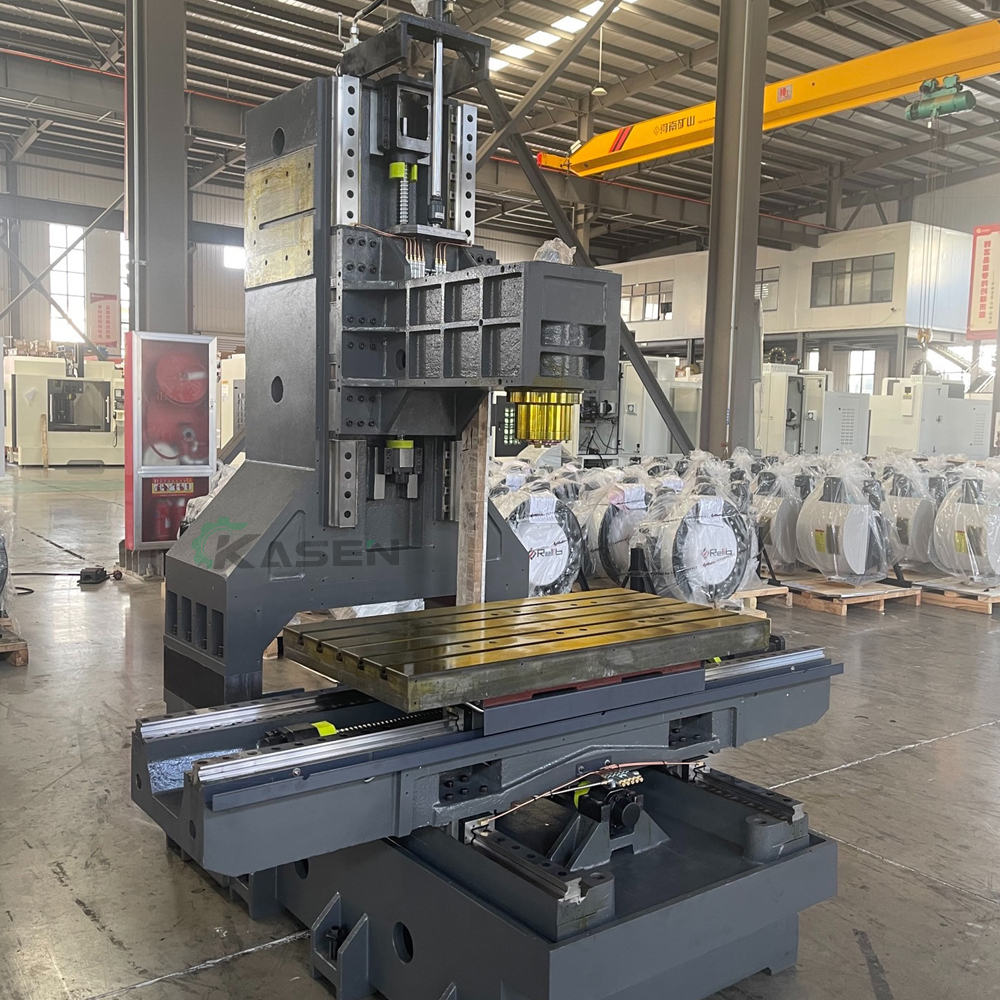

Machine Tool Casting Part

HT300 high-grade gray iron castings have been quenched twice and subjected to aging vibration treatment. The reinforced rib structure spindle box has strong rigidity and long service life.

Taiwan Spindle

Famous Taiwan spindle. High speed, high precision. Good surface finishing. 10000rpm/12000rpm is optional.

Taiwan Linear and Screw

Taiwanese brand linear guides and screws provide higher precision and more accurate positioning.

Taiwan Armless Tool Magazine

Optional 12/16/24 knives, tool changing speed 3s.

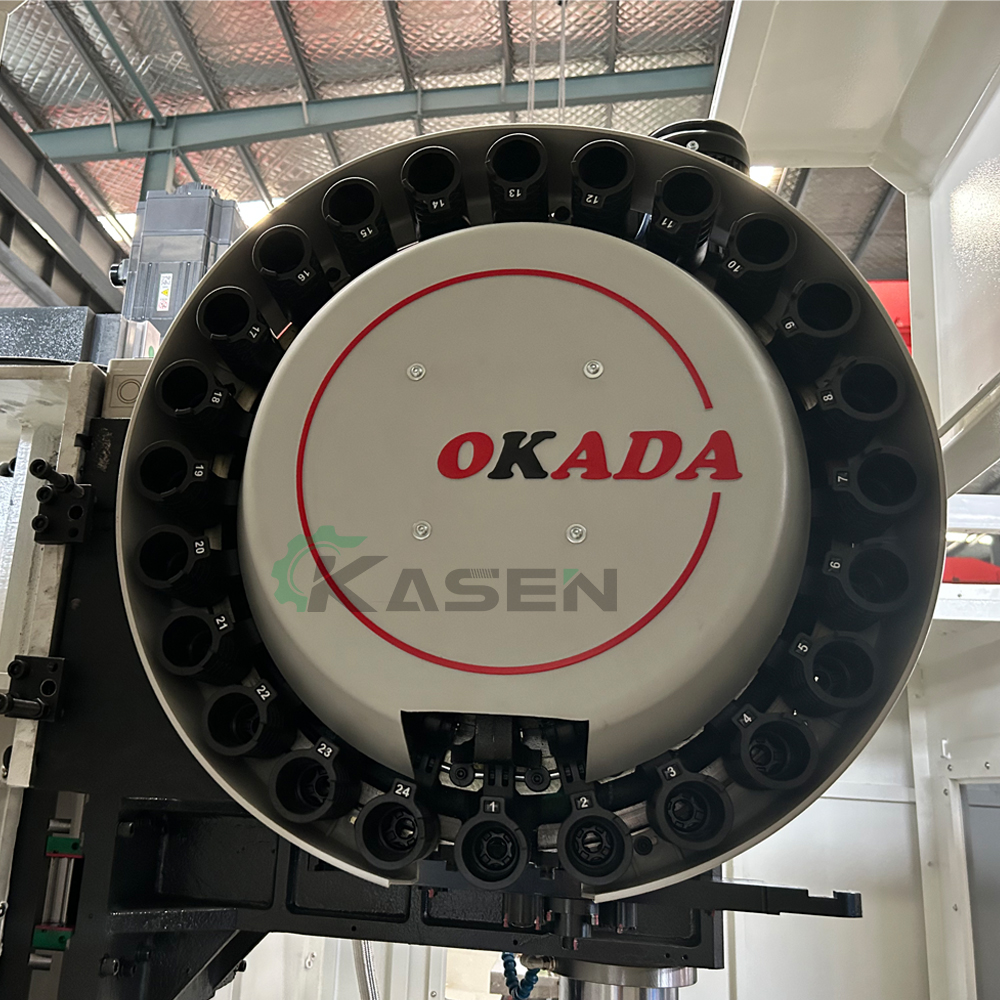

Taiwan Disc Tool Magazine

24 tools, tool changing speed 2s, automatic tool changing.

Air Conditioner

Standard with Industrial electrical cabinet air conditioner. Cooling the electric box better.

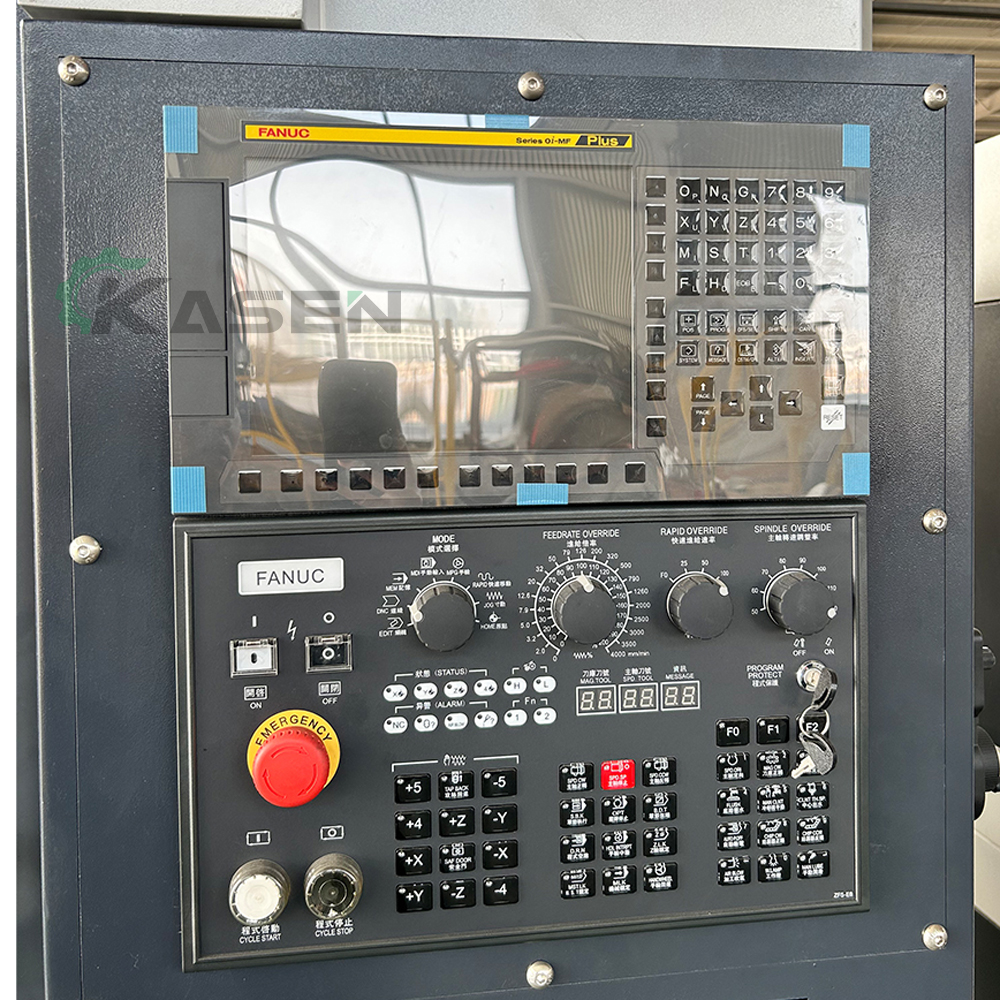

CNC Control System

Optional - Fanuc/Siemens/GSK/Syntec/Mitsubishi brand.

Lubrication System

Automatic centralized lubrication device.

Schneider Electric Components

Standard Schneider safety electrical components.

Heat Exchanger

Transfer heat from hot fluid to cold fluid.

Chain Chip Conveyor

Optional chain type chip conveyor. It can filter most iron filings and has good chip removal performance.

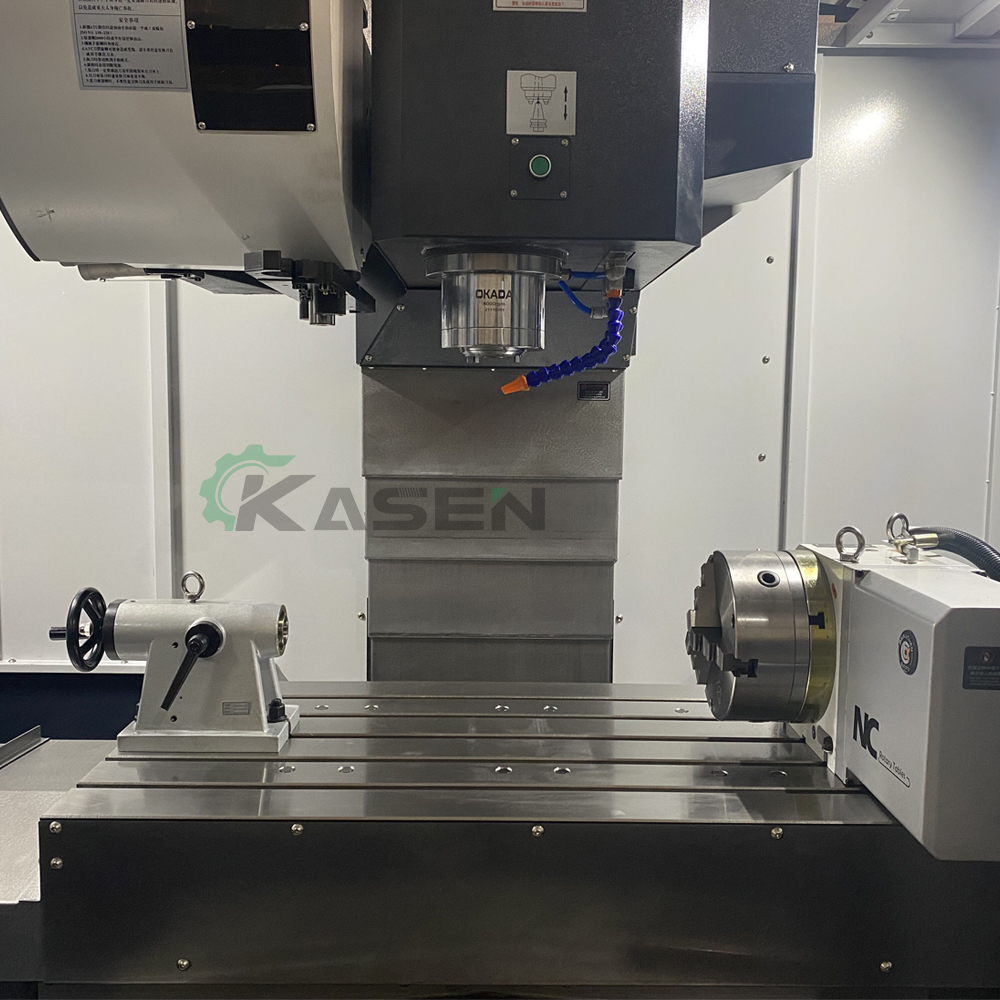

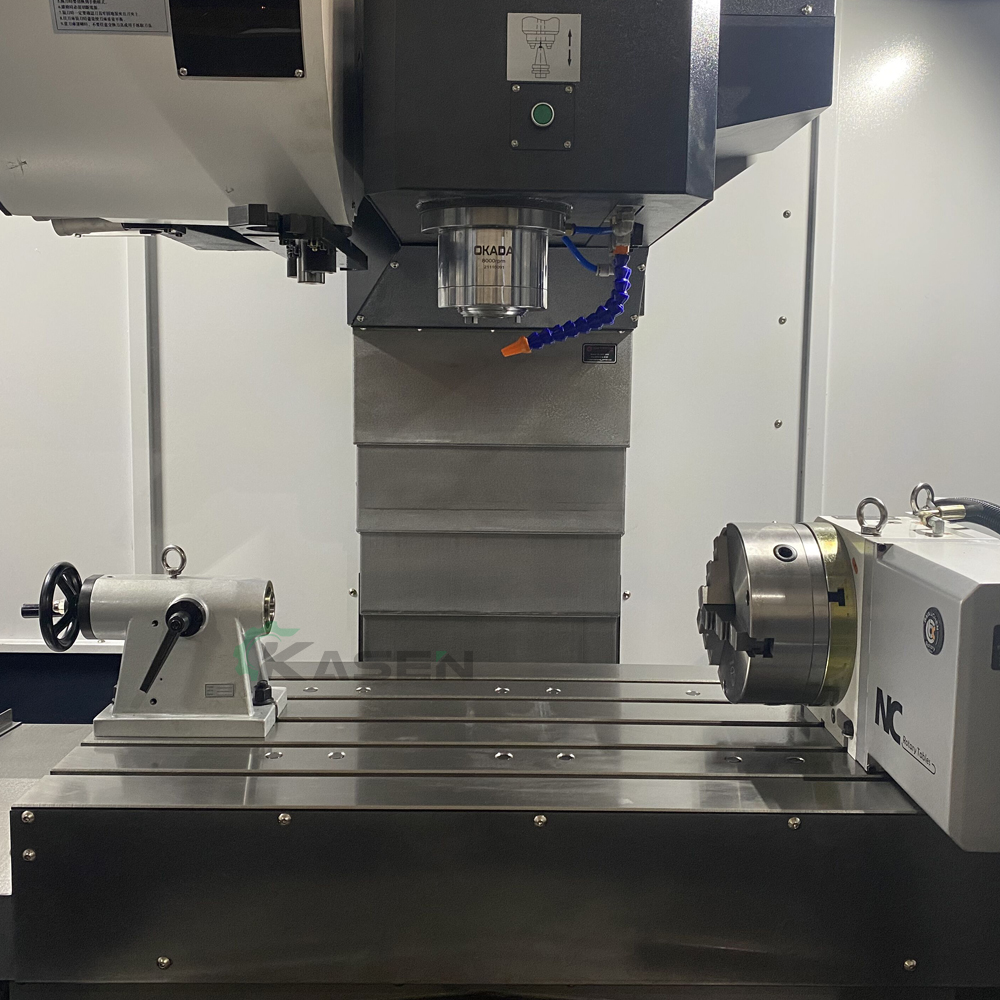

Optional 4th Axis

Taiwan brand, with hydraulic chuck and top tailstock.

Optional 4th Axis (Bridge Type)

Taiwan brand, bridge type, it including Disc tailstock, Middle plate and L-block.

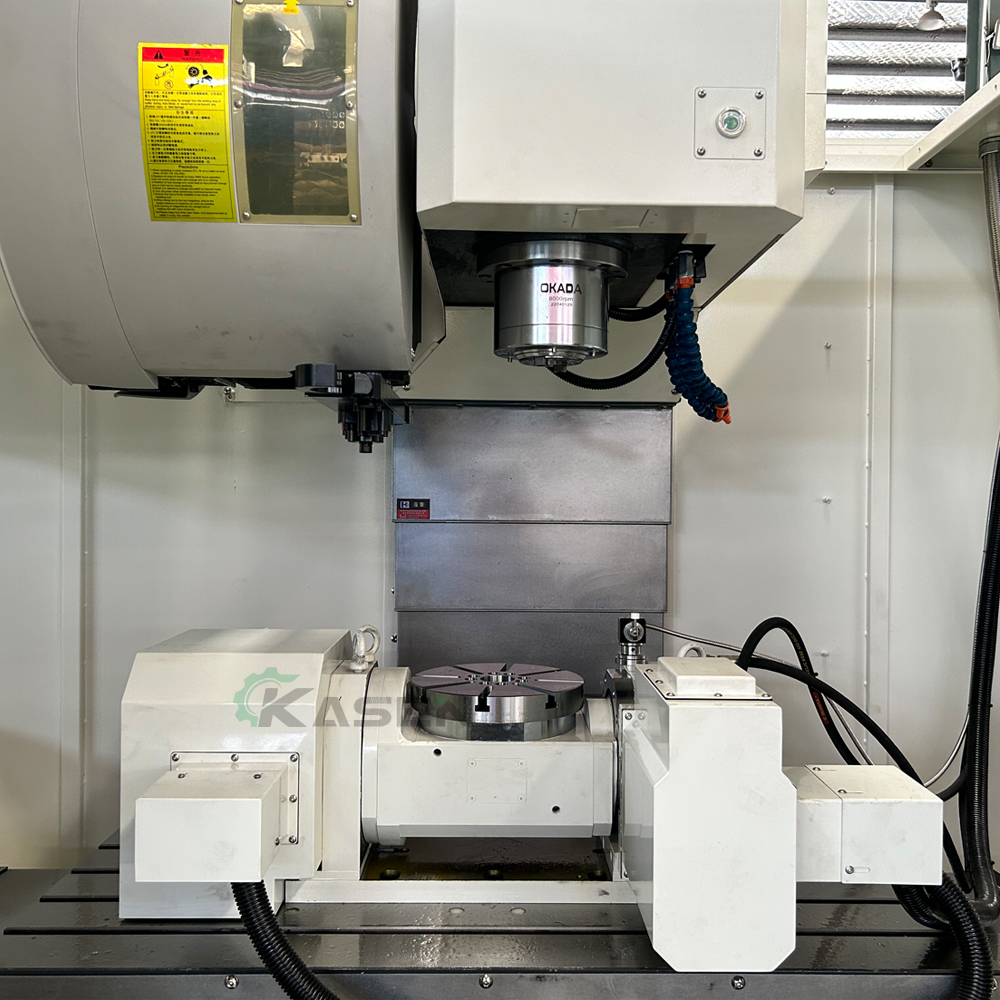

Optional 5th Axis

Taiwan brand, Five axis linkage. High accuracy, high performance and high efficiency. Strong braking system.

Testing & Quality Inspection

The machine is inspected by Cue meter, dial indicator, dynamic balance and Renishaw laser detector before leaving the factory.

Production Showcase

FAQ

Q1: What are the main applications of this VMC855 machine?

A1: This Vertical Machining Center (VMC) is designed for mechanical processing and mold making. It is highly adaptable and can handle operations ranging from rough machining to finish machining, including milling, drilling, tapping, and boring.

Q2: What type of spindle is equipped on this machine?

A2: The machine features a high-performance Taiwan spindle with standard speed configuration options. Higher spindle speeds like 10000 rpm or 12000 rpm can also be matched according to specific customer requirements.

Q3: Which CNC control systems are compatible with this VMC?

A3: We support multiple optional CNC control systems, including industry-standard brands like Fanuc, Siemens, GSK, Syntec, and Mitsubishi.

Q4: What casting process does the machine body undergo?

A4: The body is made from HT300 high-grade gray iron castings that undergo a complete casting process, including being quenched twice and treated with vibration aging to ensure high rigidity, stability, and long service life.

Q5: What tool magazine options are available for the machine?

A5: You can choose between a Taiwan Armless Tool Magazine (12/16/24 knives with a 3s tool changing speed) or a Taiwan Disc Tool Magazine (24 tools with a fast 2s automatic tool changing speed).

Q6: What inspection and testing procedures are done before delivery?

A6: Each machine tool goes through a rigorous inspection process utilizing Cue meters, dial indicators, dynamic balance testing, and Renishaw laser detectors to guarantee accuracy before leaving the factory.

CNC Machining Center Structural Showcase
