A vertical milling head can look square while cutting noticeably out of tram. The evidence appears on the workpiece: one side of a facing cut shines wider, cutter marks vary, and edge dimensions drift. Learning how to tram a vertical milling machine head helps prevent these errors before they become expensive parts. It also builds a stronger understanding of machine alignment, tooling, and measurement.
Tom Lipton, a respected machinist and manufacturing educator, often stresses, “The setup is the work.” That principle fits this task perfectly. Tramming is not merely loosening bolts and tapping the head into position. It requires a clean table, a reliable tram indicator, controlled adjustments, and patience. Even a thin chip under the head or indicator base can create a false reading. Small details matter.
This guide will explain how to check the head from side to side and front to back. It will also cover indicator movement, adjustment methods, tightening sequence, and final verification. A dial test indicator, a rigid holder, and a clean reference surface are essential. Do not trust the first reading. Check it twice.
The process may feel slower than expected. That is normal. A perfect reading is not always practical on an older machine, either. The goal is repeatable accuracy within the work required. After adjustment, a light test cut should confirm the result. If the cut still varies, revisit the setup instead of blaming the cutter. Mistakes happen. Careful measurement exposes them.

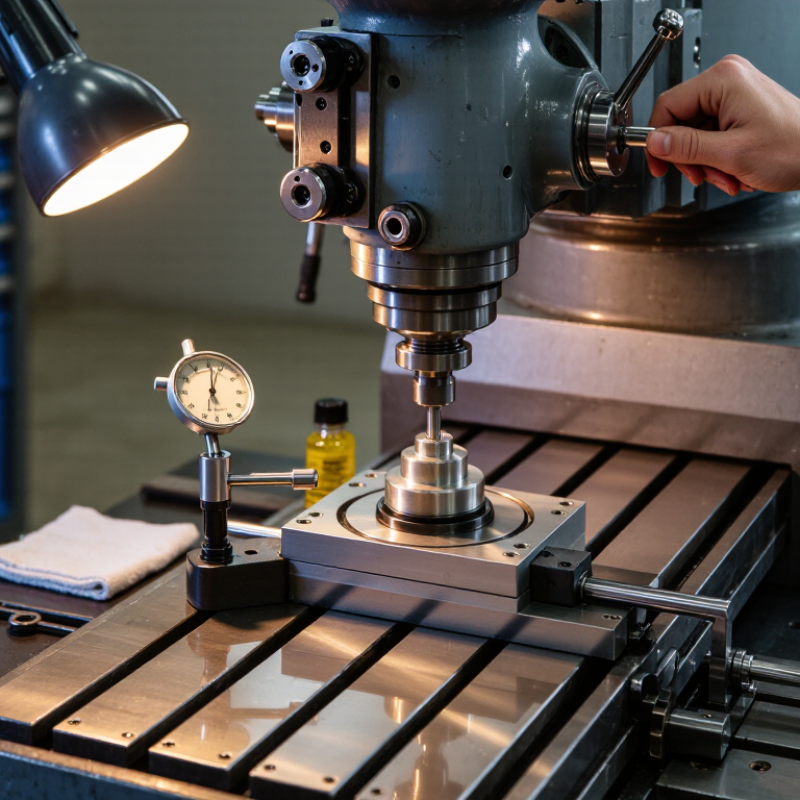

How to Tram a Vertical Milling Machine Head?
Understanding Vertical Milling Machine Head Tramming
Tramming aligns the spindle axis square with the milling table. It controls cutter contact, surface finish, and insert wear during face milling. Clean surfaces first. Chips beneath the head or indicator can create a false reading. I wipe the table, spindle taper, and indicator arm before measuring.
Mount a dial test indicator in the spindle and sweep a known table distance. A 0.05 mm height difference across 150 mm equals approximately 0.019 degrees of angular error. That small angle can leave visible steps on a wide face. ISO 230-2:2014 emphasizes repeatability and measurement conditions when evaluating machine-tool accuracy. Therefore, record the indicator readings, spindle position, and environmental conditions. Measure, do not guess.
Loosen the head only enough for controlled adjustment. Tap it gently, then tighten the bolts in stages. Recheck the sweep after every adjustment. The National Institute of Standards and Technology highlights traceable measurement and uncertainty control in manufacturing metrology. That principle matters here: indicator resolution does not guarantee actual accuracy. I usually target near-zero variation, but real machines may require a practical tolerance based on their condition and workpiece size. My first attempt is rarely perfect. Tightening can shift the head again. A final sweep under normal clamping pressure exposes that mistake.
Tramming makes the spindle axis square with the milling table. It improves cutter contact and surface finish. It can also reduce uneven insert wear. Small errors matter.
Clean the table, ways, spindle taper, and head mounting surfaces. Remove every visible chip. Even a thin chip can distort the reading. Cleanliness is part of accuracy.
Use a rigid test bar, dial test indicator, wrench set, and torque wrench. A machinist’s square can check side-to-side alignment. The bar must resist bending. A 300-millimeter sweep reveals small errors clearly.
Record front, rear, left, and right readings. Note the spindle position and machine temperature. Repeat each measurement at least three times. Write down the correction direction.
Mount the indicator or test bar in the spindle. Sweep equal distances at the front and rear. Rotate the spindle by hand. Adjust the head in tiny increments, then measure again.
A 0.05-millimeter difference across 150 millimeters creates about 0.019 degrees of angular error. That small angle may leave visible steps. A 0.01-millimeter difference can also matter on wide surfaces.
Loosen the bolts only enough for controlled movement. Tap the head gently with a soft mallet. Tighten the bolts in stages. Recheck after every adjustment.
Indicator resolution does not guarantee actual machine accuracy. Temperature, table wear, loose hardware, and mounting pressure affect results. My first setting is rarely perfect. That deserves skepticism.
Sweep the indicator again under normal clamping pressure. Confirm nearly equal readings within the job’s tolerance. Check the result with a square when possible. Record the final condition.
This guide explains how to tram a vertical milling machine head so the spindle is properly aligned with the table. It begins by describing why accurate head tramming matters for consistent cuts, square surfaces, and predictable tool performance. The process includes preparing the machine, cleaning the mating surfaces, gathering suitable measuring tools, and securing the work area before making any adjustments.
The head is then checked from side to side and from front to back using a reliable reference surface and a sensitive indicator. Small, controlled adjustments are made until the readings are consistent across the measurement path. Finally, the alignment is verified through repeated checks, with attention given to tightening fasteners without disturbing the setting. This systematic approach helps ensure accurate results and establishes a repeatable method for future inspections and adjustments.
